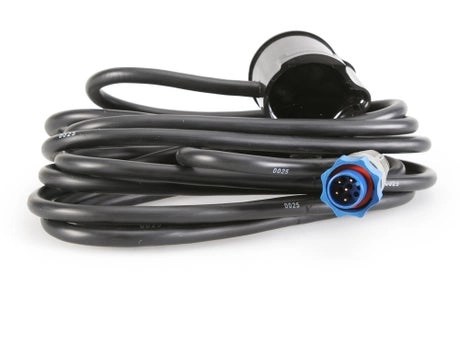

Lowrance Trolling Motor Transducer / In-Hull - 7 Pin
Attributes
Mounting Location: In-Hull/ Trolling Motor Mount
Number Of Pins: 7 Pin
Depth: 1000 Feet
Power Rating: 300 Watt
Frequency Range: 83/200 kHz Skimmer Transducer
Supported Angle: 52 Degree/ 22 Degree
Cable Length: 12 Feet
Product Description
Dual Frequency: The dual-frequency PDT-WBL features a single ceramic element delivering both 83 Kilohertz with a 52 Degree beam width, and 200 Kilohertz with a 22 Degree beam width. 83 Kilohertz low-frequency operation offers a maximum operational depth of 300 Meter, while 200 Kilohertz high-frequency provides higher-resolution fish arches and bottom detail in shallower water. Depth/Temperature: One sensor does it all. Able to measure both depth and temperature in a single package, the PDT-WBL simplifies installation and requires just one connection to your echosounder module or multifunction display. Mounting: The PDT-WBL is suitable for in-hull mounting in fiberglass hulls, or trolling-motor mounting with any hull type. In-hull or “shoot-thru-hull” transducers don’t require a hole to be drilled in your boat’s hull for installation, and offer good high-speed performance and ease of maintenance, but reduced maximum depth and fishfinding performance versus thru-hull, transom, or other in-water installations.
Features & Benefits
83 Kilohertz With 52 Degree Beam Width
200 Kilohertz With 22 Degree Beam Width
Up To 300 Meter Range At 83 Kilohertz
1 Internal Broadband Ceramic
In-Hull ‘pod Style’ With Plastic Housing And Remote Temperature Sensor
Suitable For Fiberglass Hulls
Ideal For Outboards And I/O Vessels Up To 8 Meter In Length
Recommended For Use With The SonarHub Sounder Module, Simrad NSS Evo2 And NSS Sport Multifunction Displays
Dual Frequency: The dual-frequency PDT-WBL features a single ceramic element delivering both 83 Kilohertz with a 52 Degree beam width, and 200 Kilohertz with a 22 Degree beam width. 83 Kilohertz low-frequency operation offers a maximum operational depth of 300 Meter, while 200 Kilohertz high-frequency provides higher-resolution fish arches and bottom detail in shallower water. Depth/Temperature: One sensor does it all. Able to measure both depth and temperature in a single package, the PDT-WBL simplifies installation and requires just one connection to your echosounder module or multifunction display. Mounting: The PDT-WBL is suitable for in-hull mounting in fiberglass hulls, or trolling-motor mounting with any hull type. In-hull or “shoot-thru-hull” transducers don’t require a hole to be drilled in your boat’s hull for installation, and offer good high-speed performance and ease of maintenance, but reduced maximum depth and fishfinding performance versus thru-hull, transom, or other in-water installations.
Features & Benefits
83 Kilohertz With 52 Degree Beam Width
200 Kilohertz With 22 Degree Beam Width
Up To 300 Meter Range At 83 Kilohertz
1 Internal Broadband Ceramic
In-Hull ‘pod Style’ With Plastic Housing And Remote Temperature Sensor
Suitable For Fiberglass Hulls
Ideal For Outboards And I/O Vessels Up To 8 Meter In Length
Recommended For Use With The SonarHub Sounder Module, Simrad NSS Evo2 And NSS Sport Multifunction Displays
Limited 2 Year Warranty
