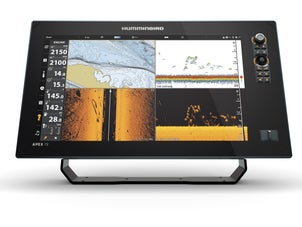

Humminbird Apex 19 Mega SI+ w/o Transducer

Chart Plotter; Apex 19 Mega SI+; Charts Of More Than 10,000 Lakes, Plus Coastal Coverage For The Continental U.S.; 19 Inch Full HD LCD Display; 1920 x 1080 Pixels Resolution; Touchscreen; Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+; Control Head/ Screen Cover/ Power Cable And Gimbal Mounting Bracket; 2 KW Auxiliary Sonar Port; 4.4 Amps Power Draw; 10.8 to 20 Volts DC; 50/ 83/ 200/ 455/ 800 kHz And 1.2 MHz Sonar Frequencies; Built In GPS And Mapping; Compatible With AIS, Autopilot, HDMI In/ Out, MEGA 360, MEGA Live, Minn Kota Built-In MEGA DI, Minn Kota Built-In MEGA SI, Minn Kota i-Pilot Link, Minn Kota Talon/ Raptor, Minn Kota US2 Sonar, NMEA 2000, One-Boat Network, Radar
 Prop 65 WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to


4 in stock

Warning: strpos() expects parameter 1 to be string, array given in /home/customer/www/ on line 197

The Humminbird Apex 19 Sonar provides the clearest sonar imaging on the sharpest multi-function displays that anglers have ever seen. Industry-leading MEGA Imaging+ and Dual Spectrum CHIRP sonar come standard, with even more performance from a dedicated sonar channel for accessory 2D CHIRP transducers up to 2kW.

See it all clearly with an 18.5" Full HD touchscreen that provides a customized display of information from advanced network options like NMEA 2000, HDMI In/Out, WiFi, and Bluetooth. Add the power of the One-Boat Network to integrate the accuracy of Humminbird GPS charts, unrivaled boat control from Minn Kota, and reach new depths with wireless Cannon downrigger control. The Humminbird Apex 19 Sonar is a new kind of Multi Functional Display that will take your fishing to a new level.

Apex features:

Full HD Display – The all-glass, low-profile 1920x1080 full HD screen takes up less space on your console and shows a perfect picture of what’s in the water.

Cross Touch Interface – Customize your Apex with options like personalized home screen, custom screen layouts, editable data readouts, multiple mapping options and integration with a number of Humminbird and Minn Kota products. Then, control your fish finder using the touchscreen or the keypad – it’s up to you.

Premium Networking Features:

Dual Ethernet Port – Dual ethernet ports allow you to connect multiple MFD’s, Humminbird radars, and an i-Pilot Link trolling motor in series, for data sharing and boat control from any display.

HDMI Video Input/Output – Allows for connection of video input, such as camera, and output allows for connection to an accessory display.

NEMA 2000 – Allows you to build a custom accessory network which can be directly connected to APEX for a complete view of your vessel and data provided by compatible accessories. Optional CZONE Contact 6/ Contact 6 plus product are also supported and optimized with APEX.

WiFi – WiFi connectivity provides support of Navionics Plotter Sync feature.


MEGA Imaging+ - Humminbird’s industry-leading sonar, MEGA Imaging+ provides extended depth and range capability. This sonar technology on new APEX models provides sonar coverage under your boat up to 250’ with MEGA Down Imaging+ and sonar coverage up to 250’ on both sides with MEGA Side Imaging+. In addition, take advantage of 20% more detail, so you can find fish fast.

Dual Spectrum CHIRP – With a powerful Low-Q CHIRP transducer, Humminbird’s Dual Spectrum CHIRP Sonar provides crystal-clear returns, exceptional target separation and amazing fish arches.

MEGA 360 Imaging Compatible – MEGA 360 Imaging provides the clearest sonar imagery using Humminbird’s MEGA Imaging+ technology, in a 360-degree view around and under your boat. Available in models for Minn Kota Ultrex and Fortrex, as well  as Universal and No Mount options. MEGA 360 Imaging can be used while sitting still or while using your trolling motor, all without interrupting your sonar picture.

GPS & Charts:

Humminbird Basemap Built-In – Humminbird’s Built-in basemap includes buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts for the entire U.S. coastline and more than 10,000 U.S. lakes and rivers.

AutoChart Live – Create real-time maps of your fishing spots, with access to patented Humminbird LakeMaster features. Map depth contours, bottom hardness and vegetation as you drive your boat, with eight hours of built-in recording time.

Humminbird Coastmaster, Lakemaster and Navionics Charts Compatible – Take advantage of premium saltwater and freshwater charts to find fish faster. The all-new Humminbird Coastmaster provides highly-accurate chart coverage for all U.S. coastal waters on a single card. For inland waters, Lakemaster charts provide easy-to-read contours and chart adjustment features. For even more chart options, Humminbird offers additional Navionics compatibility.

One-Boat Network:

Humminbird | Minn Kota | Cannon – The One-Boat Network is a family of products from Humminbird, Minn Kota, and Cannon that integrate together to make finding, staying on, and catching fish easier.. With a Humminbird control head at the center of it all, built-in Ethernet and Bluetooth provide control of your Minn Kota i-Pilot Link trolling motor, Talon, and Raptor shallow water anchors and Cannon downriggers Even utilize the Humminbird FishSmart App for wireless software updates and connecting with technical service.

What's in the box?

  • Apex unit
  • Mounting bracket
  • Power cord
  • Installation hardware
  • Documentation
